Has good corrosion resistance, especially in some different concentration and temperature of organic acid and inorganic acid, or in oxidizing medium has good corrosion resistance,also has good mechanical properties,mainly used for heat resistant components, can also be used in the container with corrosive medium.

Description

Has good corrosion resistance, especially in some different concentration and temperature of organic acid and inorganic acid, or in oxidizing medium has good corrosion resistance;Also has good mechanical properties, is more suitable for subsequent machining, and because the non-magnetic, is the best choice for plastic mould materials required non magnetic and high corrosion resistance.

Application

Mainly used for heat resistant components, can also be used in the container with corrosive medium.Such as used as the core, magnetic resistance instrumentation, medical equipment, acidproof container and petroleum, chemical, medical, food, light industry, machinery, instrument, such as industrial pipeline and mechanical structure parts, etc.In addition, in the bending and torsional strength phase at the same time, the weight is lighter, it is widely used in the manufacture of machinery parts and engineering structures.

parameter

Chemical Composition (%)

C	Si	Mn	P	S	Cr	Ni	Ti	Fe
≤
0.12	0.80	2.00	0.035	0.025	17.0~19.0	8.00~11.00	5(C-0.02)~0.80	Balance

Mechanical Property

Tensile Strength/MPa	≥540
Yield Point/MPa	≥196
Elongation/％	≥45
Reduction of Area/％	≥55
Hardness/HB	≤187

Heat Treatment

Workability

1. Hot Working
2. Cold Working

Machinability

Specification

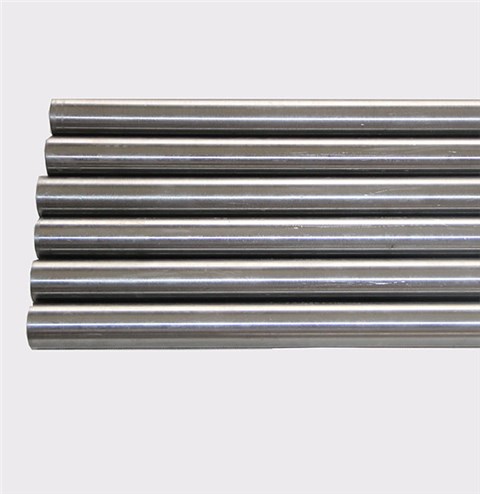

Bar-Rounds /Billet /Wire /Wire-Rod.

Size Range

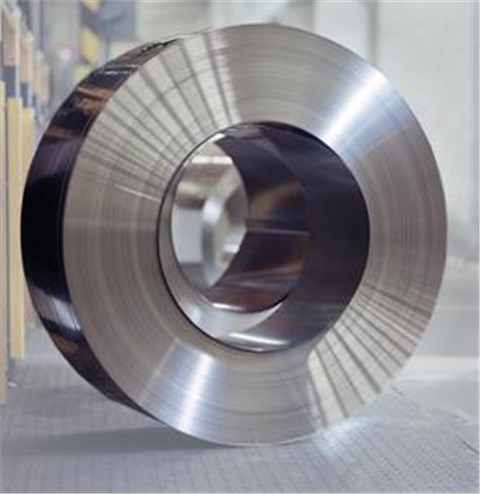

1. Sheet---Thickness 0.10mm~0.50mm,width10.0~210.0mm, Condition:cold rolled,bright
2. Plate---Thickness 3.5~40.0mm,width≤300mm, Condition:cold rolled,hot rolled
3. Bar---Dia 8.0mm~Dia 32.0mm,length≤2000mm, Condition:hot rolled,burnished Dia 32.0mm~Dia 150.0mm,length:≤1000mm, Condition:hot forging,peeled,turned
