Fe-Al alloys contain 6% to 16% aluminum , the rest elements is the iron. The alloys have high resistivity, lower density and higher hardness of soft magnetic alloy. This family of alloy is suitable for the special environment (such as nuclear radiation, shock, acceleration, etc.), and resistance to corrosion and oxidation resistance are better than those of nickel-iron&soft magnetic alloys, and silicon steel.

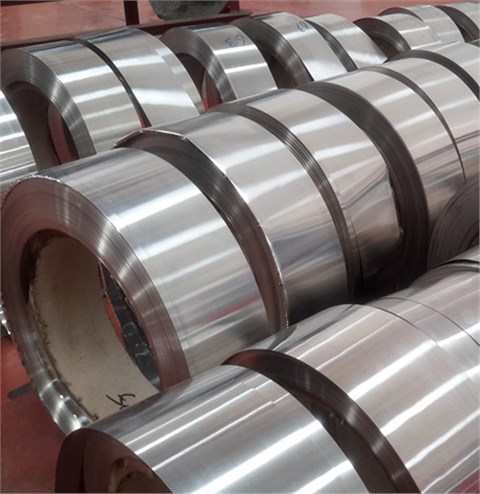

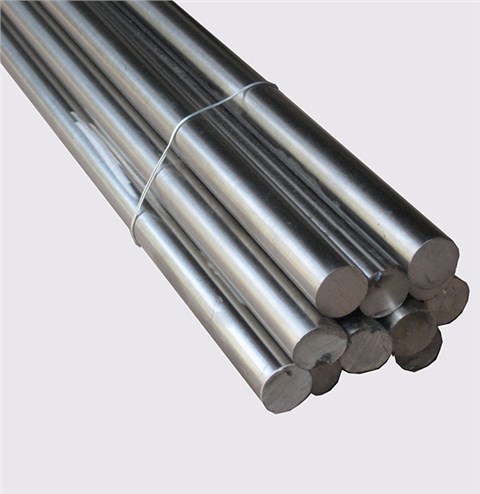

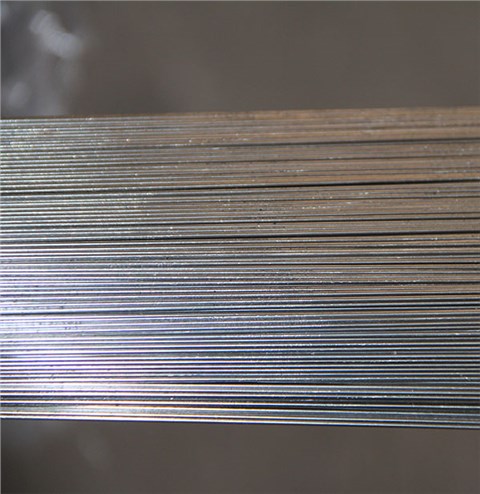

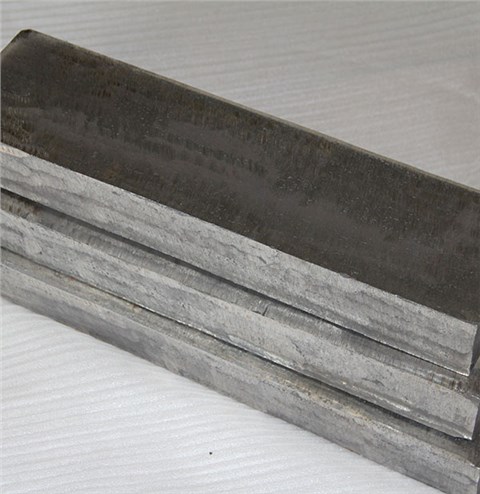

Forms: Sheet/Plate, Bar/Rod/Wire/Coil

Description

Fe-Al alloys contain 6% to 16% aluminum , the rest elements is the iron. The alloys have high resistivity, lower density and higher hardness of soft magnetic alloy. This family of alloy is suitable for the special environment (such as nuclear radiation, shock, acceleration, etc.), and resistance to corrosion and oxidation resistance are better than those of nickel-iron&soft magnetic alloys, and silicon steel.

Application

Fe-Al alloys have accessed to a broad industrial application in the fields of aviation, space flight, navigation, and other civilian and military industries.

parameter

Cross Reference

Russia	U.S.A	Japan
Ю12	12Alfenal	Hypermal

Chemical Content (%)

C	P	S	Mn	Si	Al	Fe
≤
0.03	0.015	0.015	0.1	0.15	11.6~12.4	Balance

Mechanical Property

Density	6.7 g/cm3
Resistivity (annealed)	1.0 μΩ.cm
Coercive Force	12A/m
Curie Point	655ºC

Magnetic Property

0.20~1.00mm Strips rolled at Medium Temperature
μ0.8/(mH/m)	≥3.1
μm/(mH/m)	≥31.3
B2400/T	1.2
B3200/T	1.3
Hc/(A/m)	≤12
Br/T	≤0.5

Size Range

Sheet	Thickness: 0.10mm~3.50mm,width:≤300mm
Plate	Thickness: 3.5~40.0mm,width:≤300mm
Round Wire	Dia 0.1mm~Dia 5.0mm
Flat Wire	Dia 0.5mm~Dia 5.0mm,length:≤1000mm
Bar	Dia 5.0mm~Dia 8.0mm,length:≤2000mm
	Dia 8.0mm~Dia 32.0mm,length≤3000mm
	Dia 32.0mm~Dia 180.0mm,length:≤1300mm

Condition: (With max tolerance) cold rolled,hot rolled,annealed,cold drawn,bright,bright annealed,hot forging,peeled,turned,hot treated
