P6 alloy is a cobalt-vandium-iron ductile permanent magnet alloy. The material is used in electrical and electronic applications. Magnetic properties are optimized by heat-treating cold rolled material. It has relatively high remanence and low coercive force.
Forms: Sheet/Plate, Bar/Rod

Description

P6 alloy is a cobalt-vandium-iron ductile permanent magnet alloy. The material is used in electrical and electronic applications. Magnetic properties are optimized by heat-treating cold rolled material. It has relatively high remanence and low coercive force.

Application

Applicable to the permanent magnet. Relay. Magnetoelectric meter, electricity meter, magnetic damping device, the meter Calculate apparatus, storage, speakers, hysteresis motor rotor.

parameter

Chemical Composition (%)

C	Si	P	S	Mn	Co	V	Ni	Fe
≤
0.12	0.7	0.025	0.02	0.7	44~45	3.5~4.5	5.3~6.7	Balance

Mechanical Property

Density (g/cm3)	8.2
Resistivity(room temperature)/(μΩ•cm)	33
Thermal Coefficient (20~300℃)/( 10-6/K)	10.7
Modulus of Elasticity/MPa	176400

Magnetic Property

Magnetic field intensity(Hμ)	A/m	4000～5200
Flux Density (Bμ)	T	1.3～1.6
Pμ	erg/cm3≥	1.5×105
Kμ≥	kμ≥	0.62

Size Range

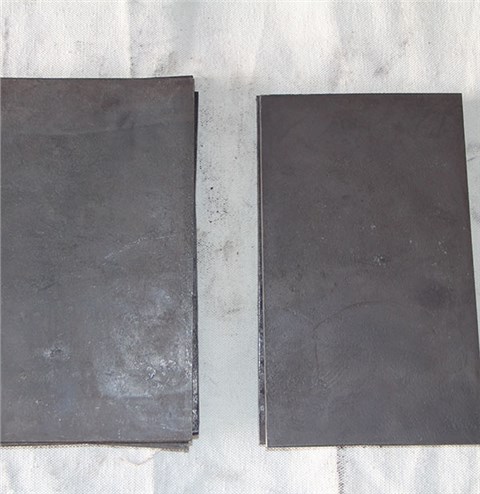

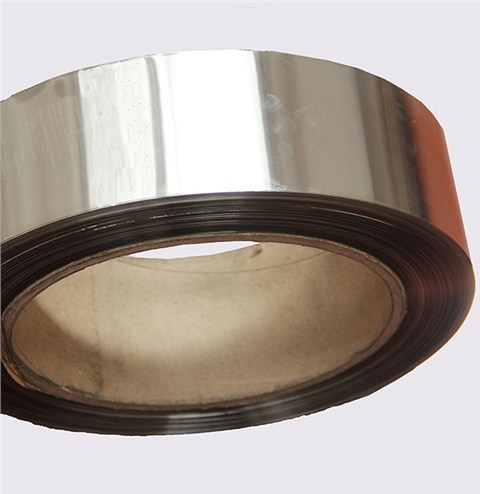

Sheet	Thickness 0.05mm~0.70mm, width:10.0~160.0mm
Plate	Thickness 3.5mm~40.0mm,width:10.0~160.0mm

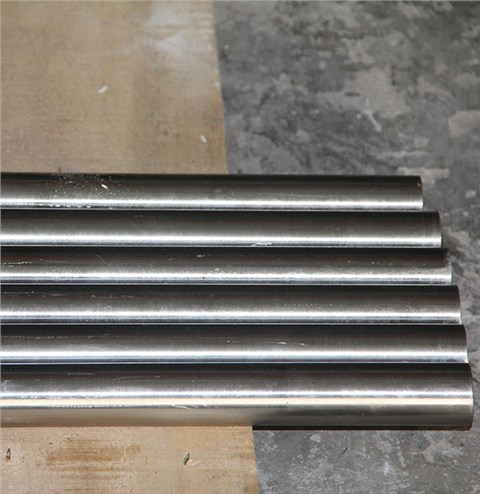

Bar	Dia 8.0mm~Dia 32.0mm,length:≤2000mm
	Dia 32.0mm~Dia 150.0mm,length:≤1000mm

Condition: (With max tolerance) cold rolled,bright,hot rolled,burnished,,hot forging,peeled,turned
